Afon Gwydol Embankment

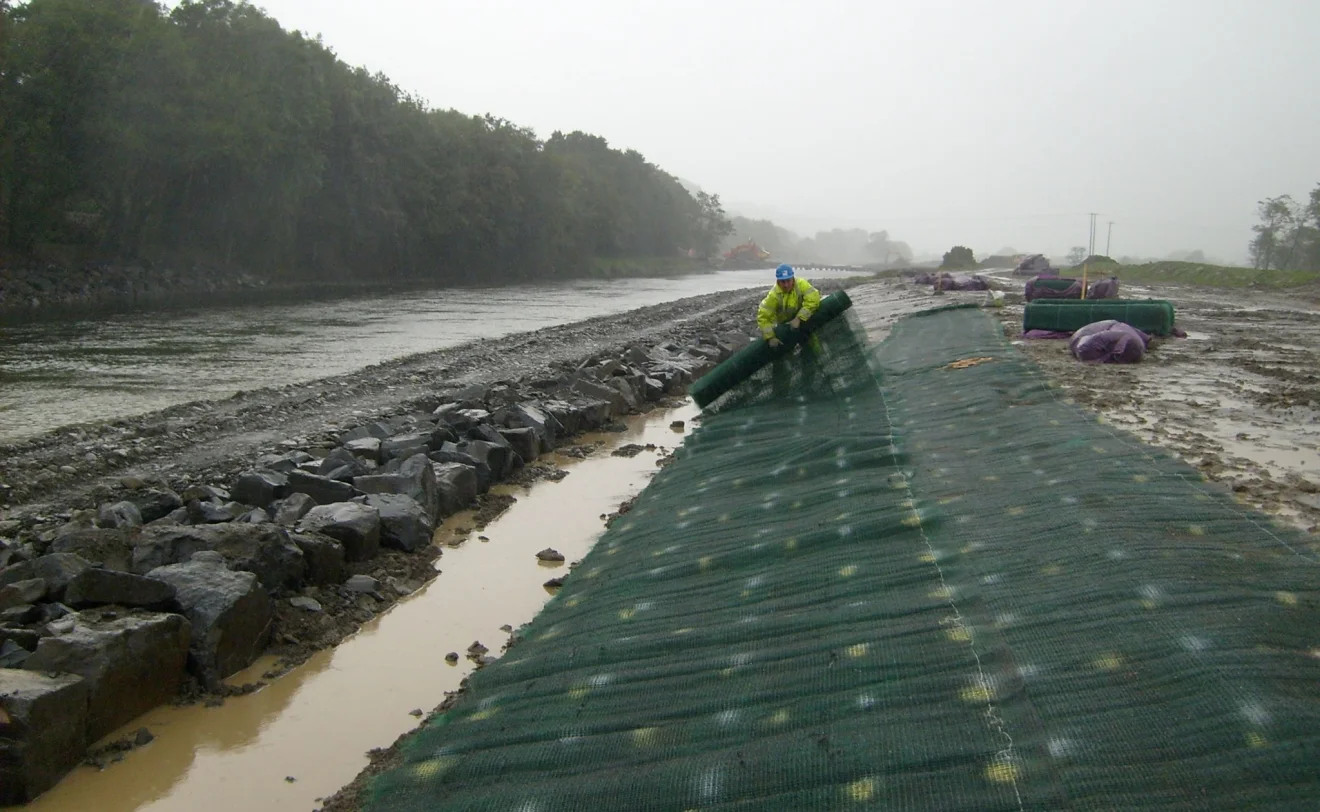

VMax P550 Winter Installation  Blockstone Alternative AbergwydolBlockstone Toe With VMax P550 Replacing Further Stone Up The BankOne Month Later In NovemberSeven Years Later
Blockstone Toe With VMax P550 Replacing Further Stone Up The Bank

Works were required to repair an eroding railway embankment adjacent to the river. This resulted in the embankment encroaching into the river, causing erosion problems on the opposite bank belonging to a local farmer.

Difficult site access created problems for using large blockstone. Salix replaced part of the blockstone armouring with VMax P550.

The P550 is the highest performing composite Turf Reinforcement Mat (TRM) in the UK. Compared to blockstone armouring it is also a more environmentally sustainable, cost effective solution that was easier to install. It also blended in better with the environment.

Anchor trenches were dug at the toe and the top of the slope to ensure the P550 was not washed away during the winter floods.

Under Salix supervision, Carillion Rail dug the trenches and formed the slope ready for Salix site operatives to seed the area with a specialist river mix and manually install the P550. The area was also over planted with some wetland plants.

The works were carried out at the end of October, which meant that the P550 remained only partially vegetated throughout the winter months of frequent flooding. By the end of the following Spring, there was no soil erosion and a good rate of vegetation establishment.


Name: Afon Gwydol River Embankment Protection
Client: Carillion Rail for Network Rail
Location: Abergwydol, Mid Wales
Category: High Energy Rivers, Rail, Rivers & Water Courses

Case Study

Afon Gwydol Embankment Case StudyDownload

Cross Sections
